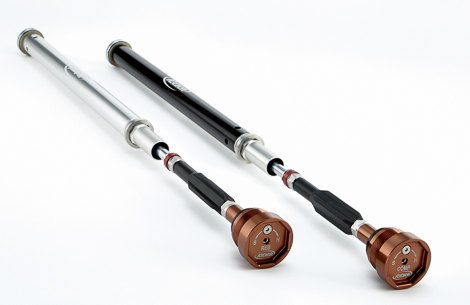

🔍K-Tech Front Fork Cartridges ORDS KTM 65SX 2012-2020, HVA TC65 2017-2020 WP
$2,155.19 inc. GST (NZD)
The K-Tech Off Road Damping System has been designed for lightweight off road motorcycles. Designed and manufactured in the UK they use the highest quality materials and processes. The system provides the rider with control and confidences in demanding off road conditions. The cartridge features a hydraulic bottoming control system which protects the rider from severe impacts when landing from large jumps. The ORDS cartridges are adjustable for compression and rebound damping.
32 clicks independent compression adjustment
32 clicks independent rebound adjustment
Hydraulic bottoming control system
Direct replacement (No machining required)
Hard chrome piston rod
Aircraft grade aluminium
Hard anodised and super finished components
Wide range of spring rates available

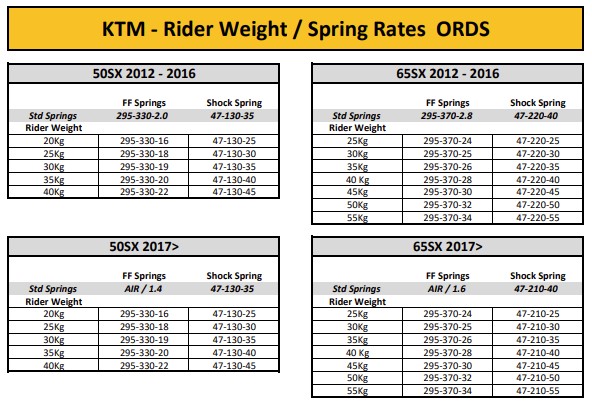

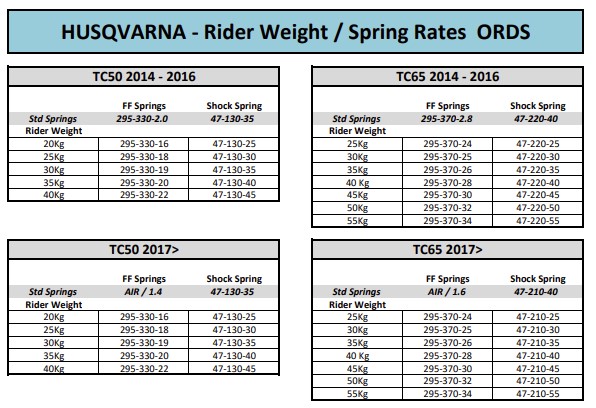

**Note: These require 295-370- series springs which must be ordered separately. Please click on ‘WE ALSO RECOMMEND’ tab below***
Available on backorder (Lead Time: 2 weeks)
| Weight | 1.8 kg |
|---|---|
| Compression | 16 |
| Inner Diameter 1 | 20.00 |
| Length (Metric) | 727.25 |
| Oil Air Gap Volume | 120 |
| Outer Diameter 1 | 10.00 |
| Rebound | 16 |
| Special Fit Note | Rec Spring 295-370- |
| Stroke | 215.00 |
K-Tech Suspension is a UK-based leader in high-performance suspension systems, known for its precision engineering and racing pedigree. Supplying championship-winning teams worldwide, K-Tech offers premium fork cartridges, shocks, and springs designed to deliver exceptional control, comfort, and consistency. Every K-Tech product embodies cutting-edge technology and expert craftsmanship, providing riders with confidence and performance on both road and track.
| SUSPENSION BRAND | MAKE | MODEL | YEAR |
|---|---|---|---|
| SUSPENSION BRAND | MAKE | MODEL | YEAR |
| K-Tech | Husqvarna | TC65 | 2017-2020 |
| K-Tech | KTM | 65SX | 2015-2020 |
