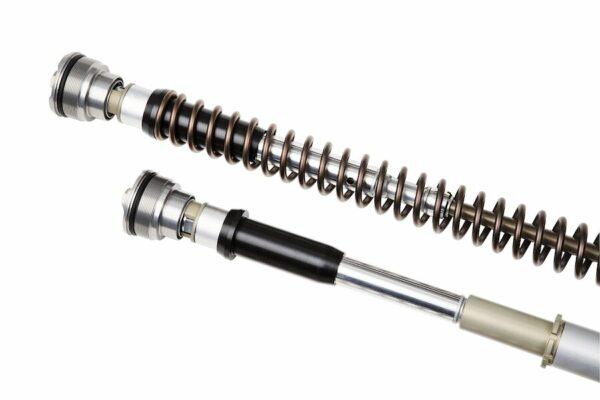

Öhlins FKA Cartridge Kit Adventure FKA 110

Part Number:
FKA 110, 08434-xx

Notes:
Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE .

Technical Data:
Length: 886 mm
Stroke: 230 mm
Position: front
Spring series: 08434-serie
Recommended oil: 01309-01
Oil level mm: 90
Packaging unit: pair

Based on the well proven NIX technology from our Road & Track product line, Öhlins developed the FKA cartridge kits for Adventure Bikes improving these in terms of comfort and overall performance.

Thanks to the FKA cartridge kits from Öhlins the bike now has a fully adjustable front end. Rebound damping is on one leg and compression in the other leg, with adjustable spring preload in both legs. Different springs are available for riders individual demands as well as an effective hydraulic stop inside the kit to prevent bottoming.

Front fork springs and oil need to be ordered separately. Spring rate recommendations can be found in the mounting instruction.
