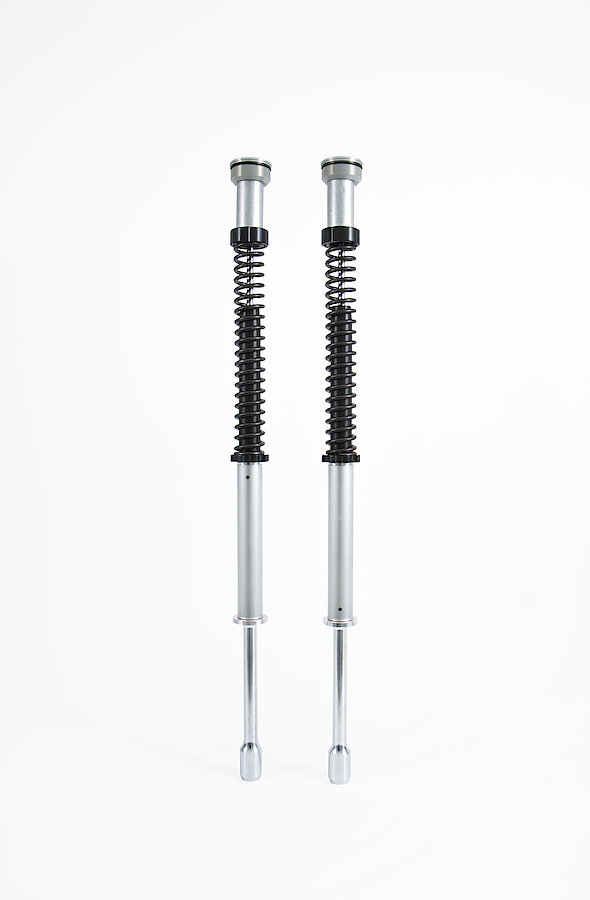

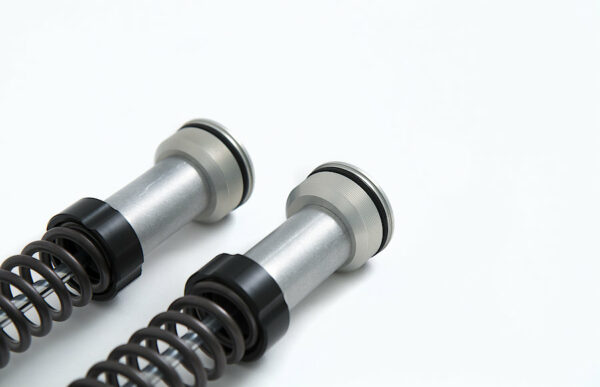

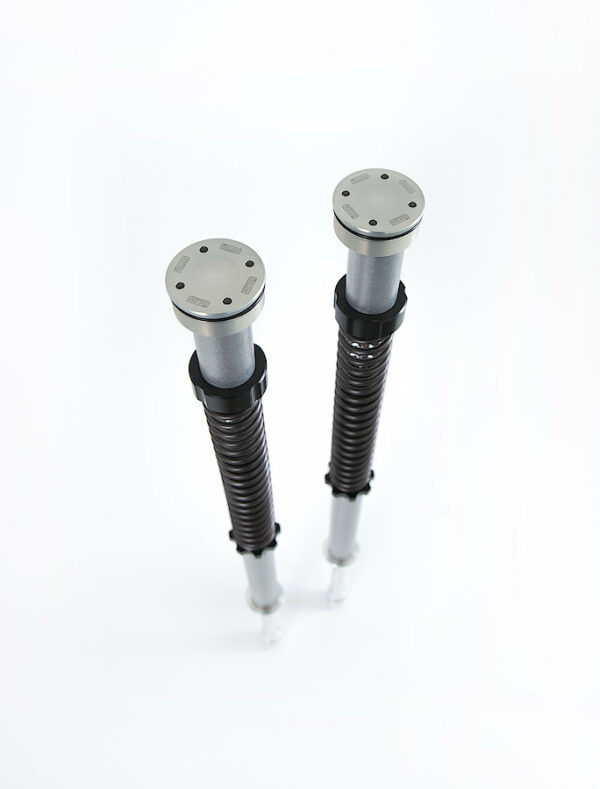

Öhlins FKC Cartridge Kit Custom & Heritage FKC 102

Part Number:
FKC 102, 08866-xx

Type Code:
25mm Cartridge Kit R&T

Notes:
Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE .

Technical Data:
Position: front
Spring series: 08866-Serie
Recommended oil: 01309-01
Oil level mm: 80 mm
Packaging unit: pair

The Öhlins FKC Cartridge Kit introduces Öhlins advanced suspension technology to the front forks of the popular line of Harley Davidson FLH/FLT Touring Baggers. Built on the race proven Öhlins NIX technology, the front fork cartridge damping system vastly improves performance, comfort and vehicle control for the Harley-Davidson front forks.

To maximize the damping performance available in confines of a fork leg, compression and rebound damping are separated between the legs. Also, we did away with the hassle of external adjusters. Just install and enjoy! Of course, optional spring rates are available for individual rider weights, preferences and use of the bike.

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider’s weight and preference listed in the specific cartridge kit’s mounting instruction.
