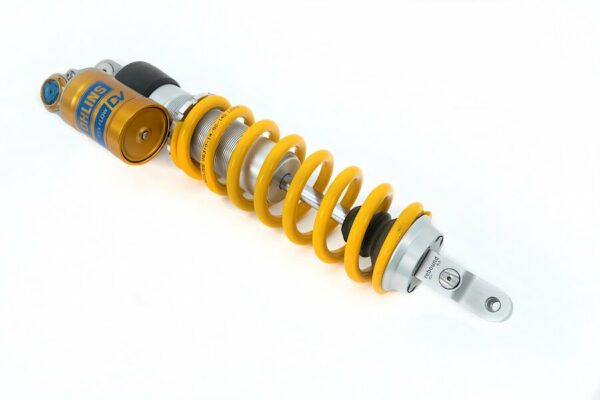

Öhlins TTX Flow DV MX & Enduro Shock Absorber DMX 0302

Part Number:
DMX 0302/06320-xx/6452-xx

Type Code:
T46PR1C2W

Technical Data:
Length: 415 mm
Stroke: 100 mm
Position: rear
Spring series: 06320-xx, 06452-xx
Recommended oil: 01304-XX
Packaging unit: pieces

We are happy to introduce a highly effective high-speed adjuster with unique design at the TTX Flow DV, so far unseen on the market. Our high-speed adjuster is efficiently targeting position, stroking velocity, g-force hold up and bottoming control. Additionally, we have progressed further on comfort and traction through the introduction of a new rebound needle and shaft jet design, which give significant improvements. Furthermore, a new compression valve interface allowing for a more comfortable character on our products.

Öhlins MX & Enduro shock absorbers are delivered without spring. The correct spring for the riders weight must be ordered separate. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.
